Tobii-Pro-Fusion

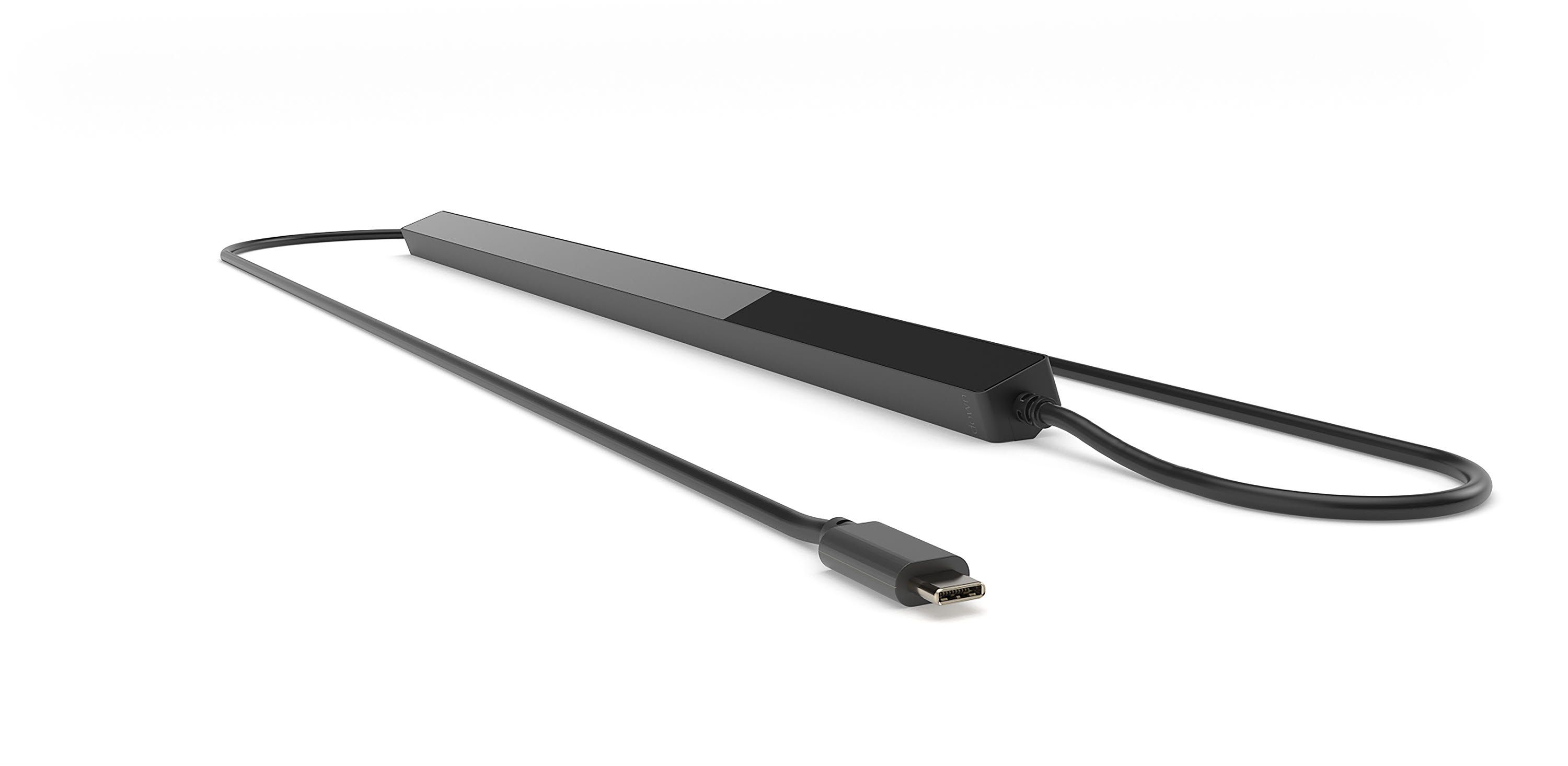

Tobii Pro Fusion

Reach further with your research

Contact us Watch the video

Our mid-range research eye tracker is versatile and powerful, capturing gaze data at 250 Hz. This screen-based system supports both fixation and saccade-based studies, inside and outside of the lab.

Breaking research barriers

Tobii Pro Fusion opens up your research possibilities, offering a powerful yet portable behavioral research solution. With sampling frequencies of up to 250 Hz, and two eye tracking cameras, Tobii Pro Fusion expands your data collection setup to more research populations, scenarios, and data requirements.

testing child in school with eye tracker

How it works

Using Tobii Pro Fusion in 3 easy steps

Tobii Pro Fusion Set up

Set up

Tobii Pro Fusion is compatible with a range of standalone monitors and laptop screens up to 24” in size and connects via USB. It can also be placed on a tripod for studies of real-world stimuli.

Tobii Pro Fusion for research

Capture

Multiple sampling rates of up to 250 Hz allow you to collect data for eye movements such as fixations, saccades, and smooth pursuit. Additionally, you can record pupil diameter and eye openness data.

Tobii Pro Fusion

Understand

Tobii Pro Fusion works with our software, Tobii Pro Lab, supporting researchers from experiment design to data analysis. Calculate eye tracking metrics, create visual representations of data or export for further analysis in other software.

Pair it with our software

Tobii Pro Lab + Tobii Pro Fusion

This solution supports both fixation and saccade-based studies, inside and outside of the lab, allowing you to quickly dive into eye tracking research. Our software provides significant flexibility, enabling you to conduct advanced experiments that yield deep insights into attention and cognitive processes.

Explore Tobii Pro Lab

Tobii Pro Fusion and Pro Lab

Features

Data points

Data you can trust

Works across the population regardless of age, ethnicity, or corrective lenses

Works across the population regardless of age, ethnicity, or corrective lenses

Works across the population regardless of age, ethnicity, or corrective lenses

Maintains tracking robustness in different lighting environments

Maintains tracking robustness in different lighting environments

Maintains tracking robustness in different lighting environments

Keeps high performance through natural head movements

Keeps high performance through natural head movements

Keeps high performance through natural head movements

Powerful yet portable behavioral research solution

Powerful yet portable behavioral research solution

Powerful yet portable behavioral research solution

Fields of use

For a range of scientific research

Tobii Pro Fusion provides a flexible solution that opens new possibilities in a variety of research fields. Discover how you can advance your research in:

Tobii Pro Fusion used in research

Psychology and neuroscience

Discover the connections between eye movements and cognitive processes to progress our understanding of human behavior.

fusion eye tracker testing on a baby

Developmental psychology

Study attention and gaze patterns, illuminating visual perception, social cognition, and language acquisition in the early stages of child development.

testing-subject-in-lab-with-eye-tracker

Clinical research

Tobii Pro Fusion allows researchers to explore biomarkers and new tools for the assessment, rehabilitation, and treatment of psychiatric and neurological conditions.

About the tech

Our patented 3D eye model delivers high-quality gaze and pupil data
Two eye tracking cameras, taking up to 250 images per second
Bright and dark pupil illumination modes automatically selected for best performance
Fully embedded processing
Easy USB or USB-C connectivity
Compatible with all main operating systems
Accurate software synchronization options with a wide range of external devices, such as EEG, ECG or GSR

Compare eye trackers

Not sure which eye tracker to choose?

Compare our screen-based eye trackers to decide which one is the best choice for your research needs.

COMPARE OUR EYE TRACKERS

icon-symbolicons-page-content

Transparent product quality methods

Tobii Pro Fusion's high data quality has been confirmed through extensive testing methods that span from systematic variations of the environmental conditions to a general assessment of the eye tracker performance with a large population of individuals.

Find out more about our quality work

Our study participants are people with Autism Spectrum disorders or Schizophrenia where having an eye tracking system that is unobtrusive and allows for head movement is imperative. The dual eye tracking cameras, sampling rate and discreet design with Tobii Pro Fusion will open up the possibilities for more extensive research on our demographic.

Dr. J. Adam Noah

YALE SCHOOL OF MEDICINE, BRAIN FUNCTION LAB

Specifications

Technical Specification

For definitions of the terms used in the tables below, see the Glossary on Tobii Connect.

For more information about output data and the supplementary data stream, please read the Tobii Pro SDK documentation.

The characteristics of the gaze data from an eye tracker are described in terms of accuracy and precision. For more details, take the Accuracy and precision course in Tobii Academy.

Eye tracking technique	Video-based pupil and corneal reflection eye tracking with dark and bright pupil illumination modes. Dark pupil tracking is supported in all sample frequencies. Bright pupil tracking is supported at 60 and 120 Hz. Two cameras capture stereo images of both eyes for robust accurate measurement of eye gaze and eye position in 3D space, as well as pupil diameter.
Eye tracking mode	N/A (default)
Sampling frequency	30 Hz, 60 Hz, 120 Hz, or 250 Hz (max. frequency depends on hardware version)
Precision¹	0.04° RMS in optimal conditions (applying Savitzky-Golay filtering, settings listed in the test report) 0.2° RMS in optimal conditions (raw signal)
Accuracy¹	0.3° in optimal conditions
Binocular eye tracking	Yes

Eye tracker latency	Mean latency < 13 ms @ 250 Hz (SD < 1.2 ms)²
Blink recovery time	1 frame (immediate)
Gaze recovery time	250 ms
Data sample output	Timestamp Gaze origin Gaze point Pupil diameter
Eye openness data stream	Eye openness stream is available in eye tracker set to 120 Hz, 60 Hz, and 30 Hz sampling frequencies. Note that the eye openness signal is not available in 250 Hz due to the processing power limitation. Eye openness stream has the same frequency as the gaze stream and will have the same timestamps. Eye openness data is provided in millimeters for each eye individually.
Eye image data stream	Eye image data stream frequency is approximately 4 Hz (one image per eye). Zoomed-in eye images available in tracking mode. Full-frame camera images are available in gaze recovery mode.
TTL input stream	Not available
Tracker and client time synchronization	Integrated between the eye tracker time domain and the client computer time domain.
User calibration	Binocular, Monocular

1

¹Tobii uses an extensive test method to measure and report performance and quality of data. Please download the test report for more detailed information.²Visit Tobii Connect for more information on how to optimize your Tobii Pro Fusion setup.

Head movement tolerance

Excellent
Dual-camera system, with more images than a one camera system, gives a more accurate data calculation and the best level of precision and robustness for head movement.

Operating distance (mounted on screen)

50 cm to 80 cm (20” to 31”) from the eye tracker

Freedom of head movement (width x height)

Freedom of head movement at 65cm distance 40 cm × 25 cm (15.7" × 9.84")

Freedom of head movement at 80cm distance 45 cm x 30 cm (17.7" x 11.8")

Optimal screen size	Up to 24" (16:9 aspect ratio)
Recommended monitor	N/A
Tracker setup options	Eye tracker mounted on a tripod, allows for even larger screens or physical objects to be tracked.
Participant setup	Very simple and easy. Typically, less than 1 minute.

1

Software and framework compatibility	Tobii Pro Lab Tobii Pro Eye Tracker Manager Tobii Pro SDK Any application built on the Tobii Pro SDK

Operating systems	Windows, macOS, Linux

1

Hardware versions	60Hz 120Hz 250Hz

1

Dimensions (L x H x W)	37.4 cm × 1.8 cm × 1.37 cm (14.72“ × 0.70“ × 0.53“)
Weight	168 g (5.9 oz.)
Connectors	USB Type-C (USB Type-A to Type-C adapter provided) AC power
Data Processing	3 Tobii EyeChip™ ASIC with fully embedded data processing

Eye tracking cameras	2 x Tobii EyeSensor™ modules
Illuminators	Dark pupil illumination modules Bright pupil illumination modules
Power consumption	Typical power consumption: 4.3 W Max. rated power consumption: 9 W
Power options	Directly via USB Type-C connector, or with provided AC power adapter, when using a computer with USB 2.0 Type-A port

1

Downloads

Downloads

Find out more about the product.

Frequently asked questions

For additional information, visit our comprehensive FAQ page.

Check out our FAQS

How can I find out the price of the eye tracker?

If you’d like to see the prices for any of our eye tracking systems, fill out the form at the bottom of the product page. One of our salespeople will be happy to contact you with a breakdown of our pricing structure.

What eye tracker should I choose for my research?

Visit our Compare our eye trackers page or take our Product Quiz to find out.

How do you analyze data from the eye trackers?

You can analyze data from our screen-based eye trackers with our software Tobii Pro Lab.

Tobii Pro Lab is used to design experiments and collect eye tracking data. It offers visualizations of your eye tracking data in the form of heat maps and gaze plots. Tobii Pro Lab also allows you to specify which kind of data you would like to export for further quantitative or qualitative analysis.

Do you provide training and support?

Tobii offers additional services to help you become successful with our products.

Training

Tobii Academy (complimentary service): Our e-learning platform with a wide range of courses on eye tracking and related topics and is included with your purchase and accessible through our customer portal Tobii Connect.

Tobii Getting Started Program (paid service): Personalized online training that introduces eye tracking technology and ensures your first study is optimized.

Tobii Comprehensive Training (paid service): A one-day on-site program that covers all the essentials of eye tracking technology and best practices. This training includes a hands-on session to apply the knowledge gained.

Tobii Access an Expert (paid service): A one-hour consultation with one of our experts tailored to your specific questions and needs.

Learn more about all our courses and services.

Support

The Tobii Customer Care service is included with your purchase and is available to all users of active Tobii assets. In addition, on Tobii Connect you will find helpful articles, e-learning, and support documents to further assist you. 

Are you interested in this product?

Fill out the form and one of our experts will reach out to you.

Tobii Pro Fusion

Swoosh Blue Bottom

Pair it with our software

Tobii Pro Lab

Behavior research software

Tobii Pro Lab

Our analytical software helps guide scientific and academic eye tracking research. Take control of your study and analyze the data in detail.

Tobii Pro SDK

APPLICATIONS AND DEVELOPER KITS

Tobii Pro SDK

Free software development kit for building analytical applications for Tobii's screen-based research eye trackers. Multiple-platform support for several programming languages.

Tobii Pro Eye Tracker Manager

Applications and developer kits

Tobii Pro Eye Tracker Manager

Free software to help manage your screen-based eye tracker. This application helps set up the eye tracker, assists with user calibration, and troubleshooting.
